Sale!

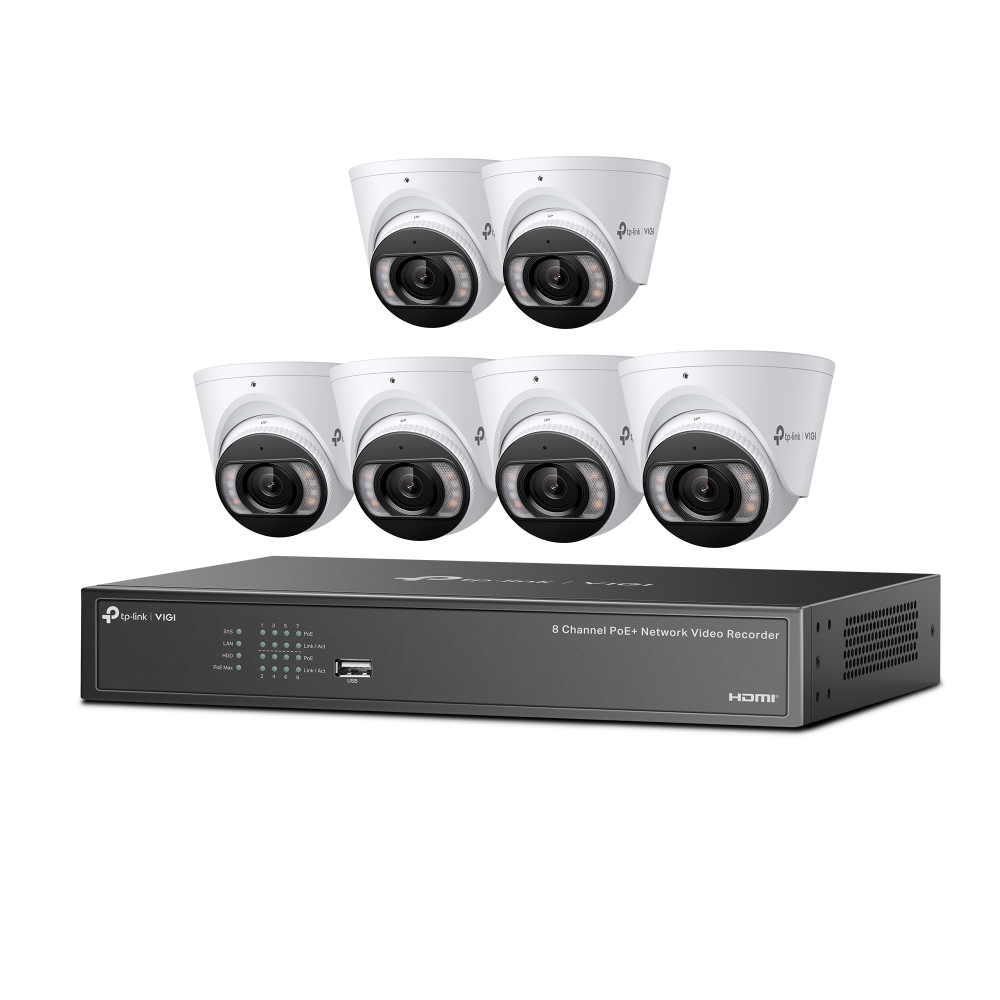

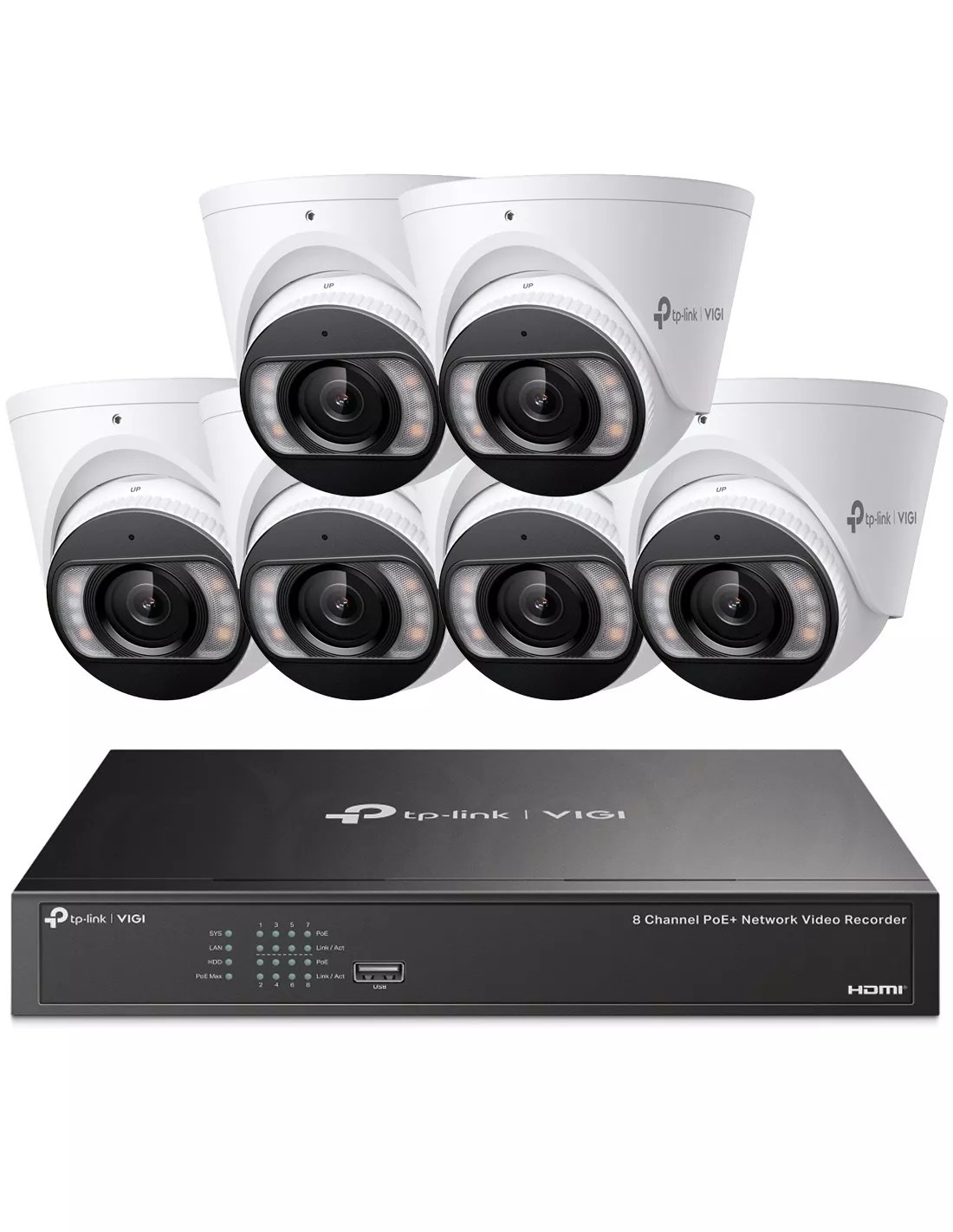

TP-LINK VIGI 8Ch PoE+ NVR Kit with 6× 4MP Full-Col Turrets & 2TB – NK8MP-T6425-2T (8×6)
- Complete 8-channel PoE+ NVR kit with 2TB HDD pre-installed
- Includes 6× 4MP full-colour VIGI C445 turret cameras
- 24/7 full-colour imaging with white LEDs for vivid night detail
- AI people/vehicle analytics and human/vehicle classification
- Smart detection: intrusion, line-crossing and area alerts
- Active defense with light/sound plus two-way audio on cameras
- 8 PoE+ ports for simple plug-and-play power and data
- 4K HDMI output and multi-channel synchronous playback
- H.265+ compression to save bandwidth and storage
- Remote viewing via VIGI app, web and VIGI Security Manager
95% Orders Same Day Shipping
- Fast Shipping - Same Day Shipping
- Our Best Services
- Need Help? Call-0212399648
Original price was: $1,199.00.$1,149.00Current price is: $1,149.00.
VIGI 4MP Full-Colour Turret IPC & 8 Channel PoE+ NVR Kit — NK8MP-T6425-2T (2TB)
Model VIGI NK8MP-T6425-2T • Includes 6× VIGI C445 Turrets + 8-Ch PoE+ NVR
Key Features & Benefits
- All-in-one PoE+ kit — 6× 4MP full-colour turrets + 8-channel PoE+ NVR + 2 TB HDD.

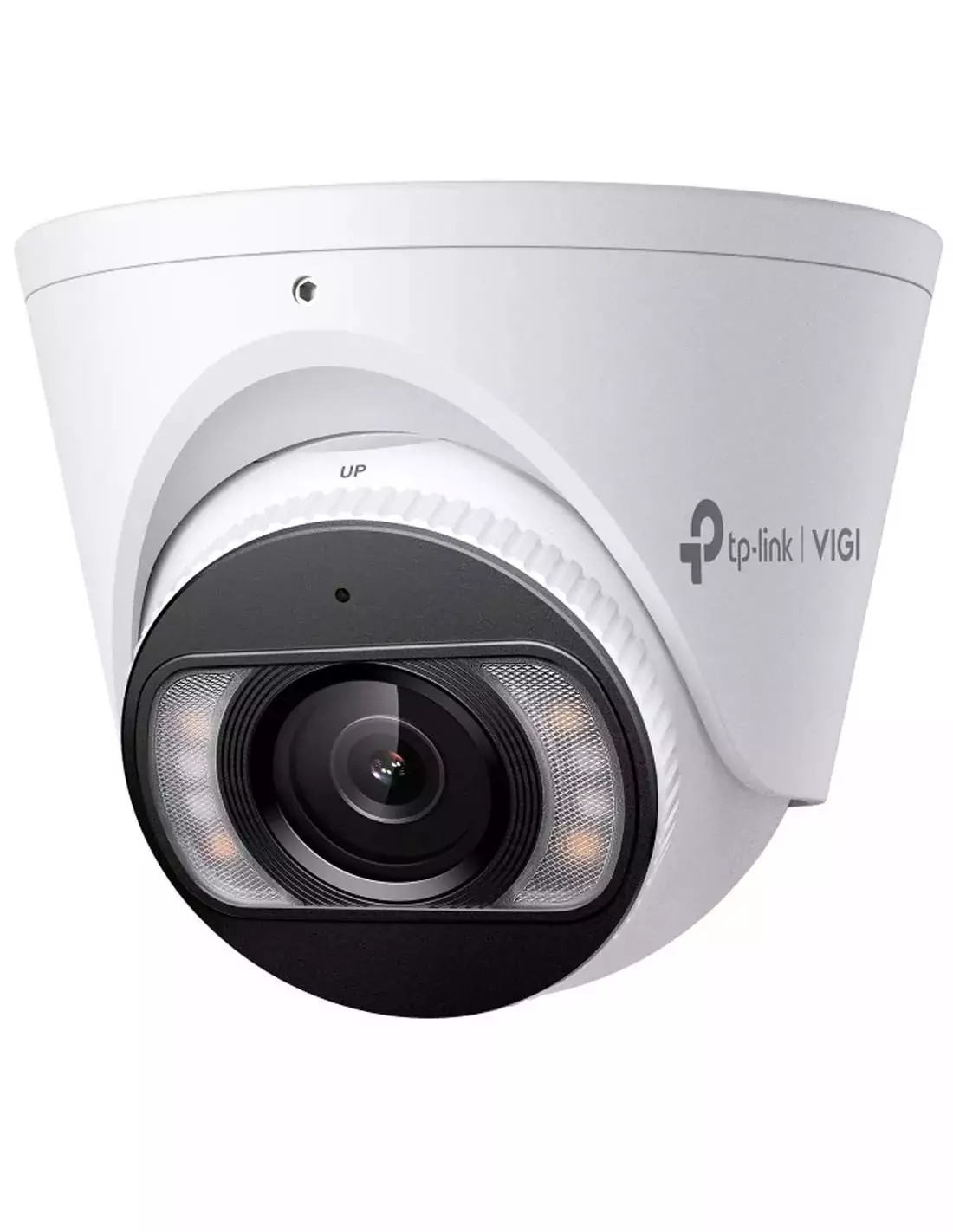

- 4MP 24/7 full-colour VIGI C445 cameras with white LEDs for vivid night detail.
- AI analytics — people & vehicle analytics, human/vehicle classification.
- Smart detection — intrusion, line-crossing and area-based alerts.
- Active defense & two-way audio on cameras to deter intruders in real time.
- 8× PoE+ ports on the NVR for simple plug-and-play power and data.
- 4K HDMI output and multi-channel synchronous playback on the NVR.
- H.265+ compression for efficient bandwidth and storage usage.
- Remote access via VIGI app, web portal and VIGI Security Manager/VMS.
- Ideal for small-scale scenarios — retail, offices, warehouses and homes.
Specification
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Aperture | F1.6 |
| Lens | 2.8 mm, Fixed Focal Lens |
| Lens Mount | M12*P 0.5 |
| FOV | Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| White LED | • Quantity: 4 • Range: 98 ft (30m) |
| IR LED | • Quantity: 4 • Range: 98 ft (30 m) • Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2688 x 1520 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 704×576,640×480, 352×288, 320×240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| Operating Temperature | -30 ℃ to 60 °C (-22 ℉ to 140 ℉) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Power Supply | • 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 12 W |
| Weatherproof Rating | IP67 Learn more about VIGI C445 (2.8mm)> |
| NVR | |
|---|---|
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/ QCIF |
| Synchronous Playback | 8-Channel* |
| Decoding Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP• 30fps: 4-ch @ 3MP, 2-ch @ 5MP |
| Hard Disk | • 1 SATA Interface • Up to 16 TB Capacity for Each HDD • 1 × 2TB HDD Preinstalled |
| PoE Budget | 113 W Available for All PoE+ Ports†, 30 W Max per Port |
| Power Supply | 53.5V DC/2.43 A |
| Working Temperature | • NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉） • Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉) |
| Working Humidity | 10%~90% RH Non-Condensing Learn more about VIGI NVR1008H-8MP> |
